| Brand Name : | Hons |
| Model Number : | 6SXM-63(CCD)A |
| Certification : | CE/SGS |
| Price : | $6500-$8500 |
| Payment Terms : | D/A, D/P, T/T, L/C |
| Supply Ability : | 500sets/month |
| Delivery Time : | 5-8 working days |

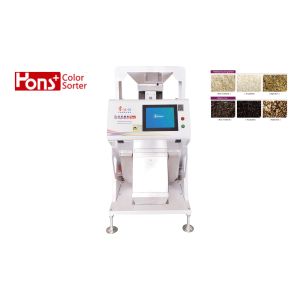

Rice Color Sorting SGS 54 Million Pixel Separator Processing Machine
Sorting Materials:
1. Beans: soybeans, mung beans, red beans, coffee beans,chickpea,red lentils
2. Rice: white rice, parbouled rice,black rice, yellow rice, brown
rice, barley rice
3. Nuts: peanuts, ground nut,cashew nut, walnut meat,pine
4. Wheat: Buckwheat,Quinoa,Qatmeal.
5. Vegetable: dry onion,daylily,back fungus,sea vegetables
6. Food: vegetable seeds, cumin seeds,prickly ash seeds,dried
shrimps,small shrimp
7. Industrial: plastic, broken glass,quaze,ore,scrap
metal,slag,salt,refractory
CCD color sorter machine parameters
| Name | S1 | S3 | S5 | S7 |
| Model | 6SXM-63 | 6SXM-189 | 6SXM-315 | 6SXM-441 |
| Capacity(Kg/H) | 800Kg-1000Kg | 2000Kg-3000Kg | 3000Kg-4000Kg | 5000Kg-6000Kg |
| Voltage(V) | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ |
| POWER(KW) | <1.5 | <2.4 | <3.0 | <4.0 |
| Weight(KG) | 350Kg | 800Kg | 1250Kg | 1600Kg |
| Dimension(L*W*H/MM) | 910*1620*1550 | 1628*1595*2040 | 2210*1595*2010 | 2836*1595*1850 |
| Air Consumption | 0.9 m³/min | 1.8m³/min | 1.8 m³/min | 3 m³/min |
| Air pressure | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa |
| Air compressor power | 4kw | 7.5Kw | 11kw*2 | 15kw*2 |
| Air tank | 600L | 1000L | 1000L | |
| Cooling Model | wind cooling | wind cooling | wind cooling | wind cooling |
| Mini Resolution( mm²) | 0.03 | 0.03 | 0.03 | 0.03 |
CCD color sorter machine strength
Cloud braininterconnection
Cloud brain vision
Intelligent image acquisition system
Automatically collecting hyper space data such as color, shape, size and defect to achieve accurate acquisition of raw material features.
International leading full color high speed three-line scanning CCD sensor (54 million pixel *3), perfect processing of small defects in materials, the minimum scanning and identification area can reach 0.2mm * 0.2mm=0.04mm²; Meanwhile, multi-thread processing capacity for "Color + Shape" .
Sorting Perofrmance
FAQ
1. How to use the machine?
We will supply customer the installation catalog or video online.
We will ask our engineer to teach you, how to use when he go to your country to debug the machine.
2. How about the sample machines for testing?
Sample sending for testing is welcomed.
Or you send these three photos, the raw material, good material (which is you want) ,bad material (which is you want to discard).we send our video to you.
3. How about the guarantee period?
One year.
1. 10 years experience engaged in the sorting machine. One of the most advanced manufacturer of hefei in anhui.
2.After-sales service: we have a professional after-sales service team, one-on-one customer service to help clients installation and debugging.
3. We have service station in southeast Asia, dealers cooperation with more than 50 countries.
4. Guarantee: the quality of materials we purchase of raw materials are certified qualified products.
5. Process quality guarantee: we have passed the CE and ISO quality management system certification, production of every working procedure strictly carried out in accordance with the standard.
|
|
